Overview
Patented RGB Video Wall Solution

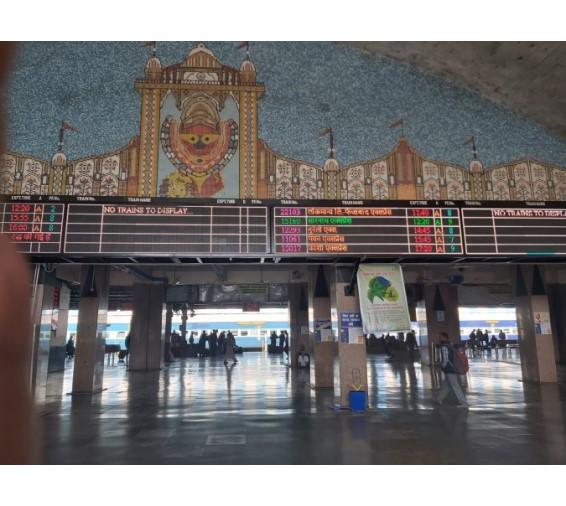

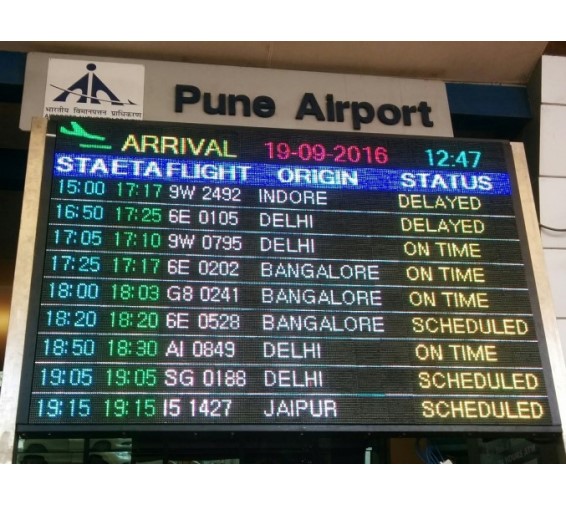

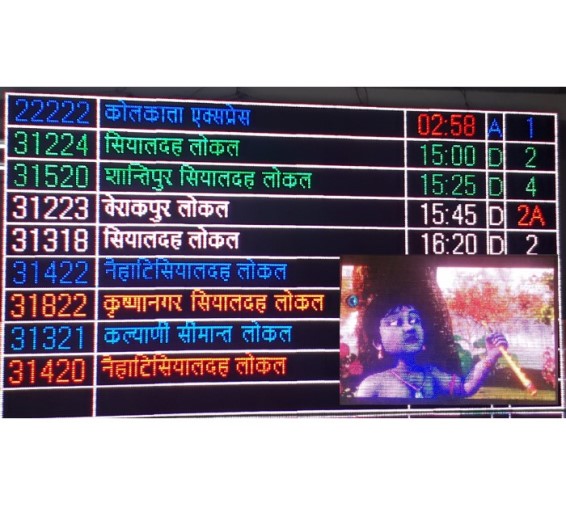

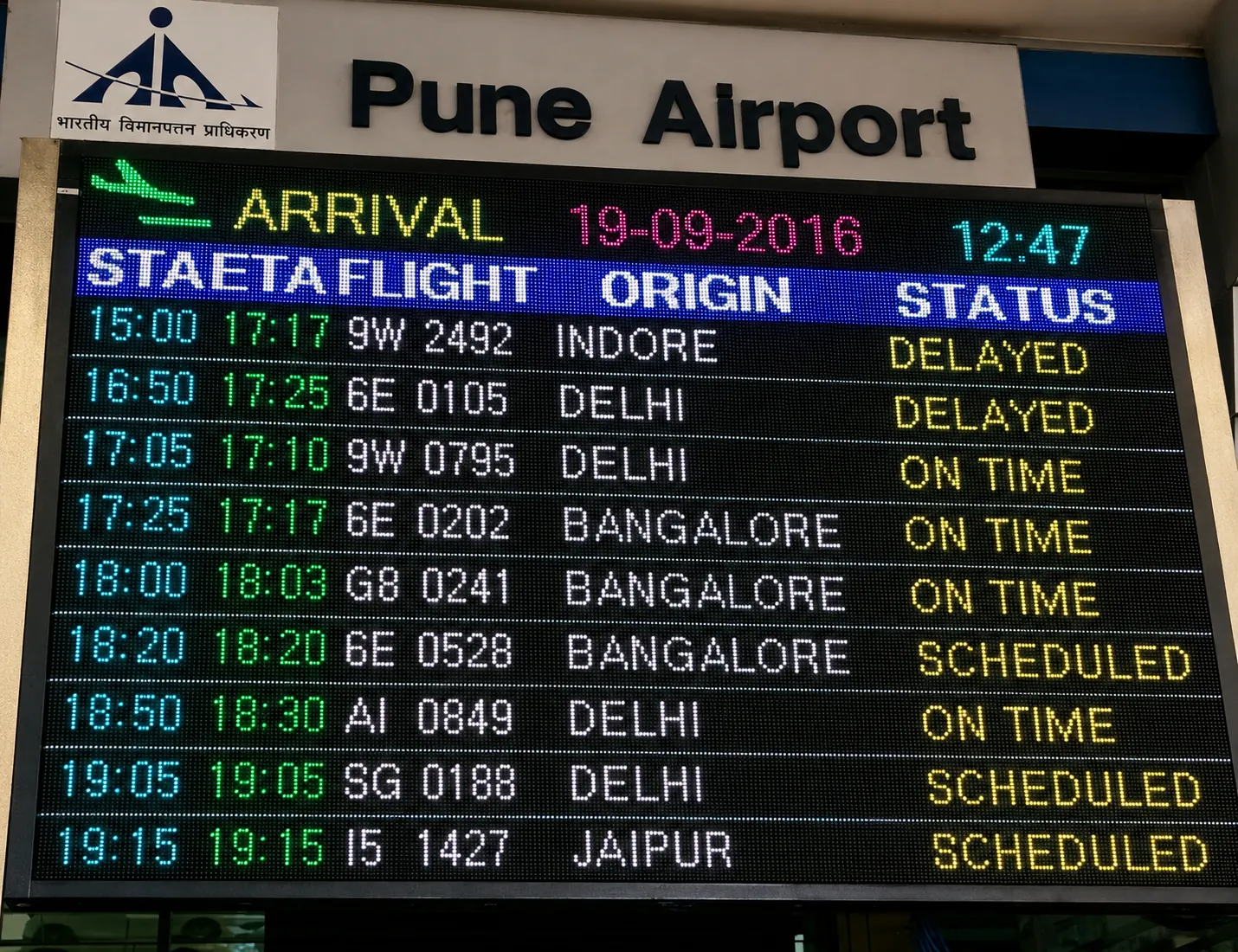

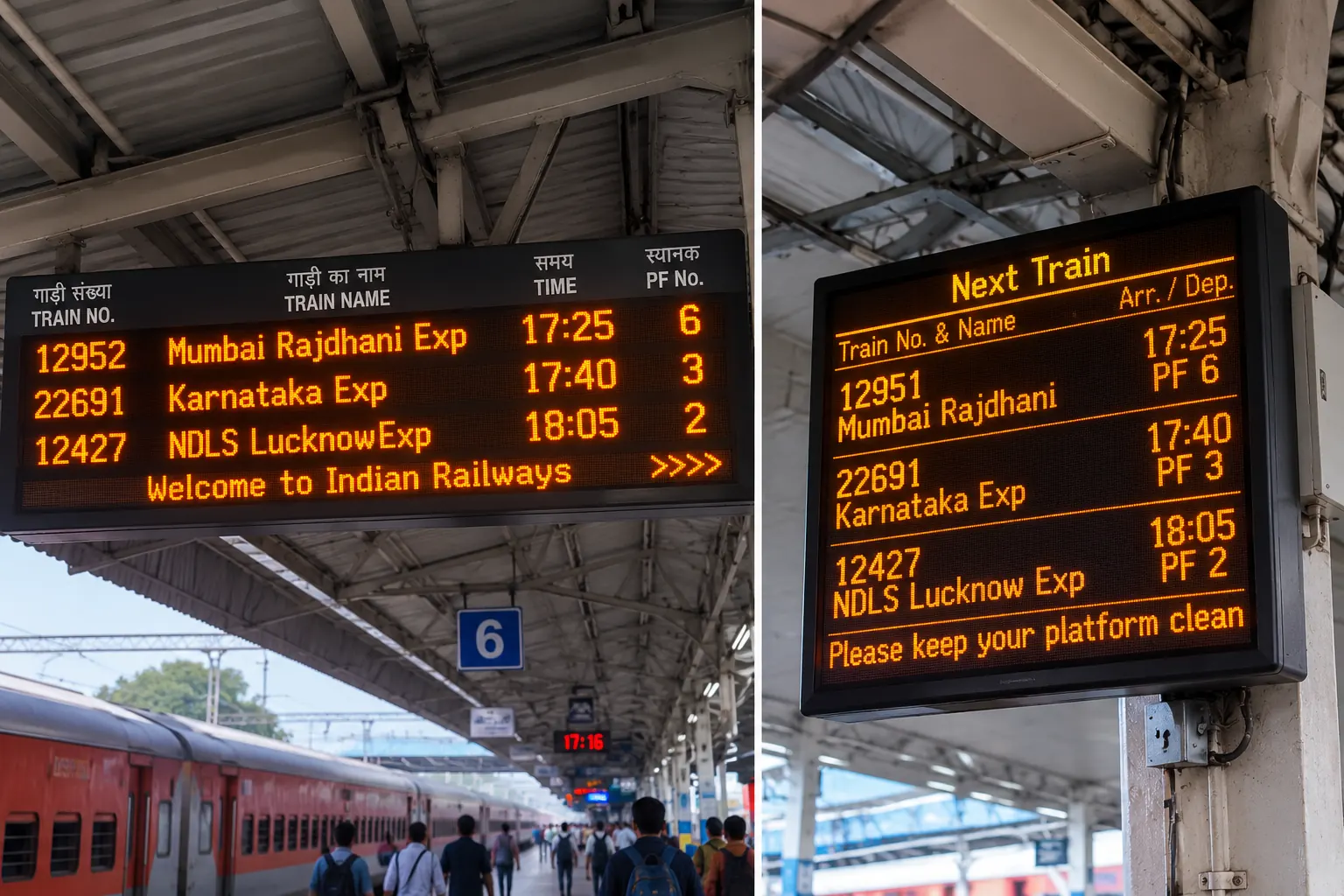

EDS-India has the patented technology for True color RGB Video Wall Solution, purpose-built for Railway and Airport display environments.
LED VIDEO WALLS
Features
| Display |
P16 Outdoor |
P10 Outdoor |
P10 Indoor |
P7.5 Indoor |
P6 Indoor |
| Pixel Pitch |
16 |
10 |
10 |
7.5 |
6 |
| Pixel Density |
3906 |
10000 |
10000 |
17777 |
27556 |
| Pixel Configuration |
1R 1G 1B |
1R 1G 1B |
3-In-1 RGB SMD |
3-In-1 RGB SMD |
3-In-1 RGB SMD |
| LED Life |
|
100000 |
HOUR |
|
|
| Module Dimension (mm) |
1280 x 1280 |
960 x 960 |
960 x 960 |
144 x 128 |
768 x 576 |
| Module Weight (Kg) |
50 |
45 |
38 |
42 |
26 |
| Power Consumption (W) / Module |
1000 |
800 |
580 |
640 |
450 |
| Input Power |
|
130V AC |
To |
270V AC |
|
| Best Viewing Distance (Feet) |
16 |
10 |
10 |
8 |
6 |
| Viewing Angle |
110° |
Horizontal |
|
60° |
Vertical |
| Brightness (NIT) |
12000 |
9000 |
6000 |
7000 |
2500 |
| Operating Temperature |
0°C - 80°C |
0°C - 80°C |
0°C - 70°C |
0°C - 70°C |
0°C - 70°C |
| IP Grade |
IP65(Back)/ IP66(Front) |
IP65(Back)/ IP66(Front) |
IP54(Back)/ IP54(Front) |
IP54(Back)/ IP54(Front) |
IP65(Back)/ IP65(Front) |
| Scanning |
1:4 |
1:4 |
1:8 |
1:8 |
1:16 |
Device USP
- Completely Indigenized Indian Design (Patented*)
- Highly Modular
- Digital Intensity & Contrast Control
- PWM based Drive technology to improve LED life span
- Lowest Power / Sq Meters
- Inbuilt Soft start to limit in-rush current and provide stable operation over life
- Temperature Controlled Force cooling for increased life of cooling fans.
- Software solution for railways devices.
- High Speed optical solutions upto 10gb.

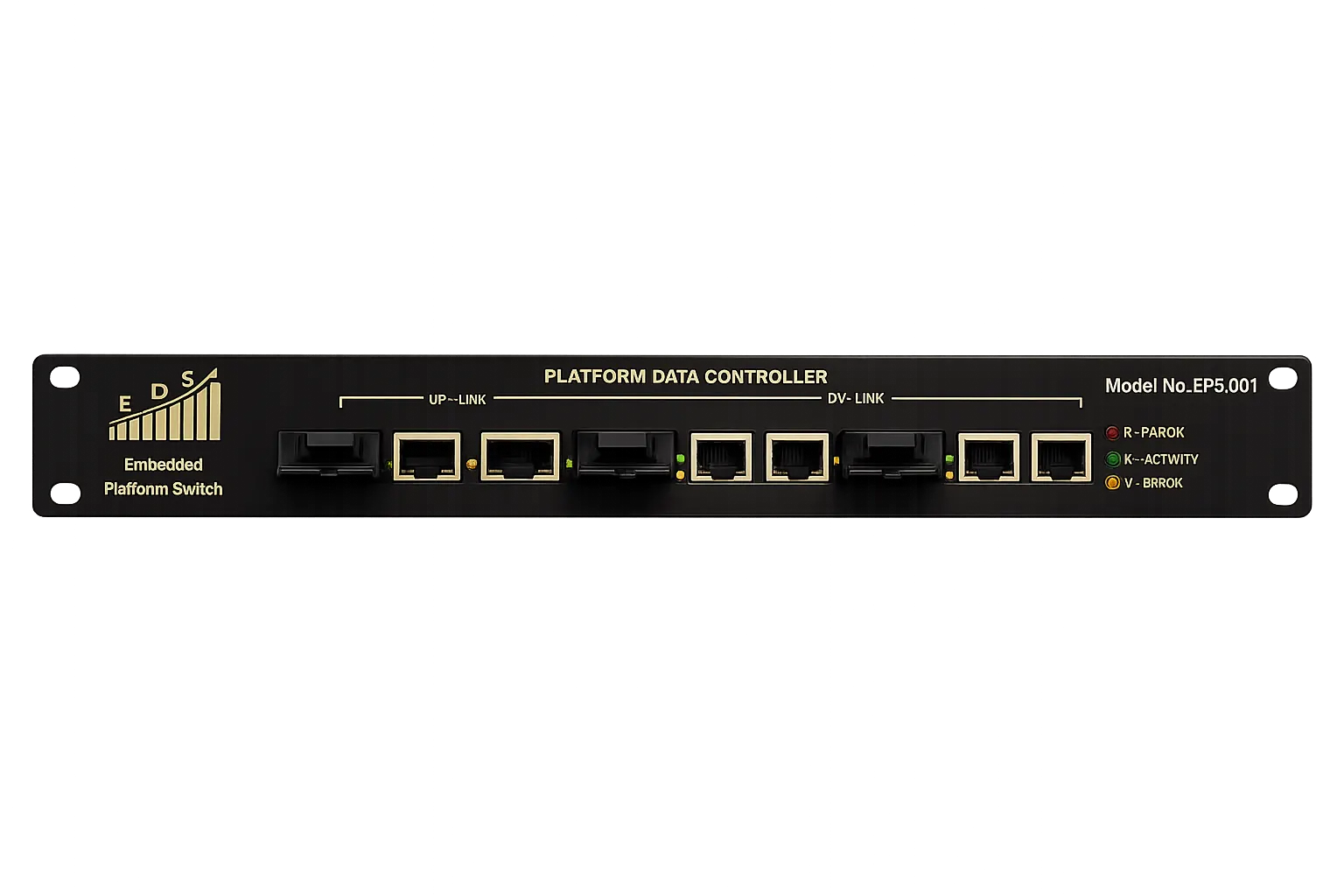

Technical Specification
| Parameters |
Rating |
| Power Input |
130V AV to 3270V AC |
| CPU |
- ARM Cotex-M4 180Mhz
- ARM Cotex-M7 400Mhz
- ARM Cotex-A Series Range 1GHZ - 1.8GHZ
|
| Operating System |
Builtroot, Yocto, Android, OpenWRT, RTOS |
| Wired Communication |
- Ethernet(10/100/1000) / LAN
- SFP ( upto 10G ) / optical
|

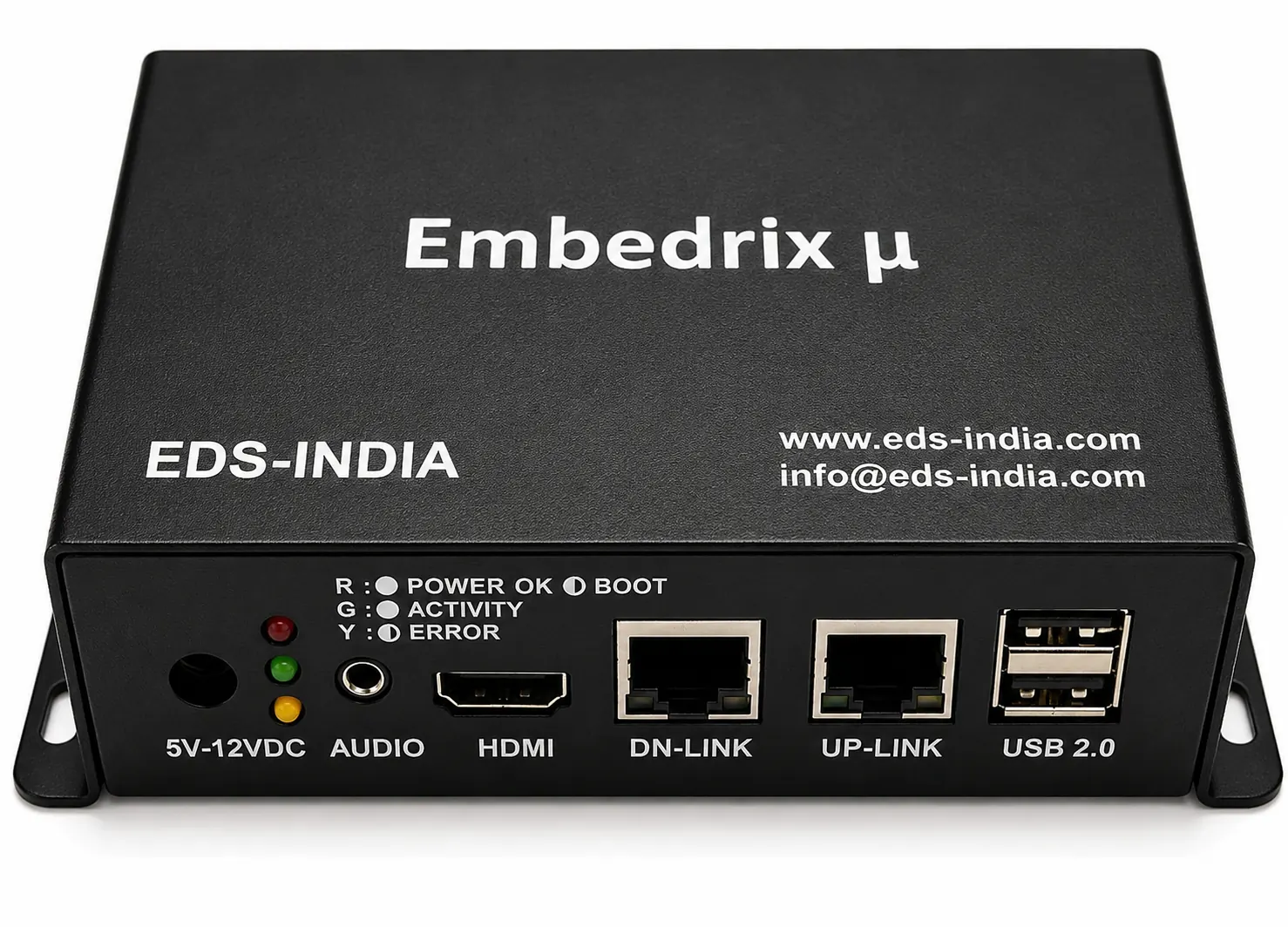

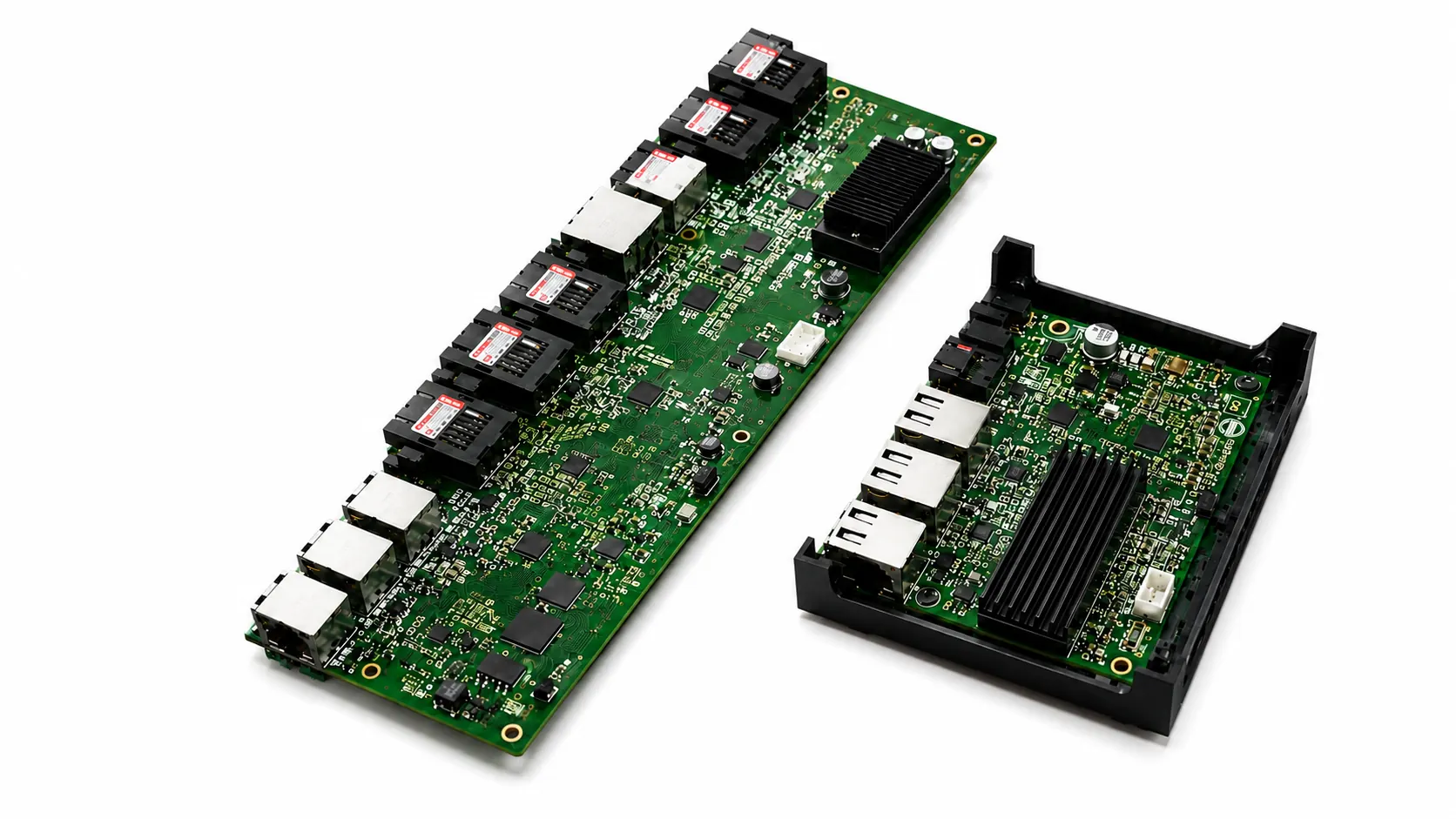

| Parameters |
LED VMS Controller |
| Input Power |
5V DC |
| Operating Temperature |
-20°C ~ +85°C |
| Storage Temperature |
-40°C ~ +85°C |
| Supported LED Matrix |
192 x 128 |
| Supported Scanning |
1:4 |
| Refresh Rate |
Upto 700Hz |
| CPU |
- ARM Cortex M4 180MHz
- ARM Cortex A55 1.7GHz Cortex M4 180MHz
|
| Internal Flash |
Upto 216MB/td>
|
| Internal RAM |
Upto 256 KB |
| External Flash |
Upto 16 GB |
| Wired Communication |
10/100/1000/10000 MBPS LAN |
| Wireless Communication |
Wi-Fi, GPRS |
