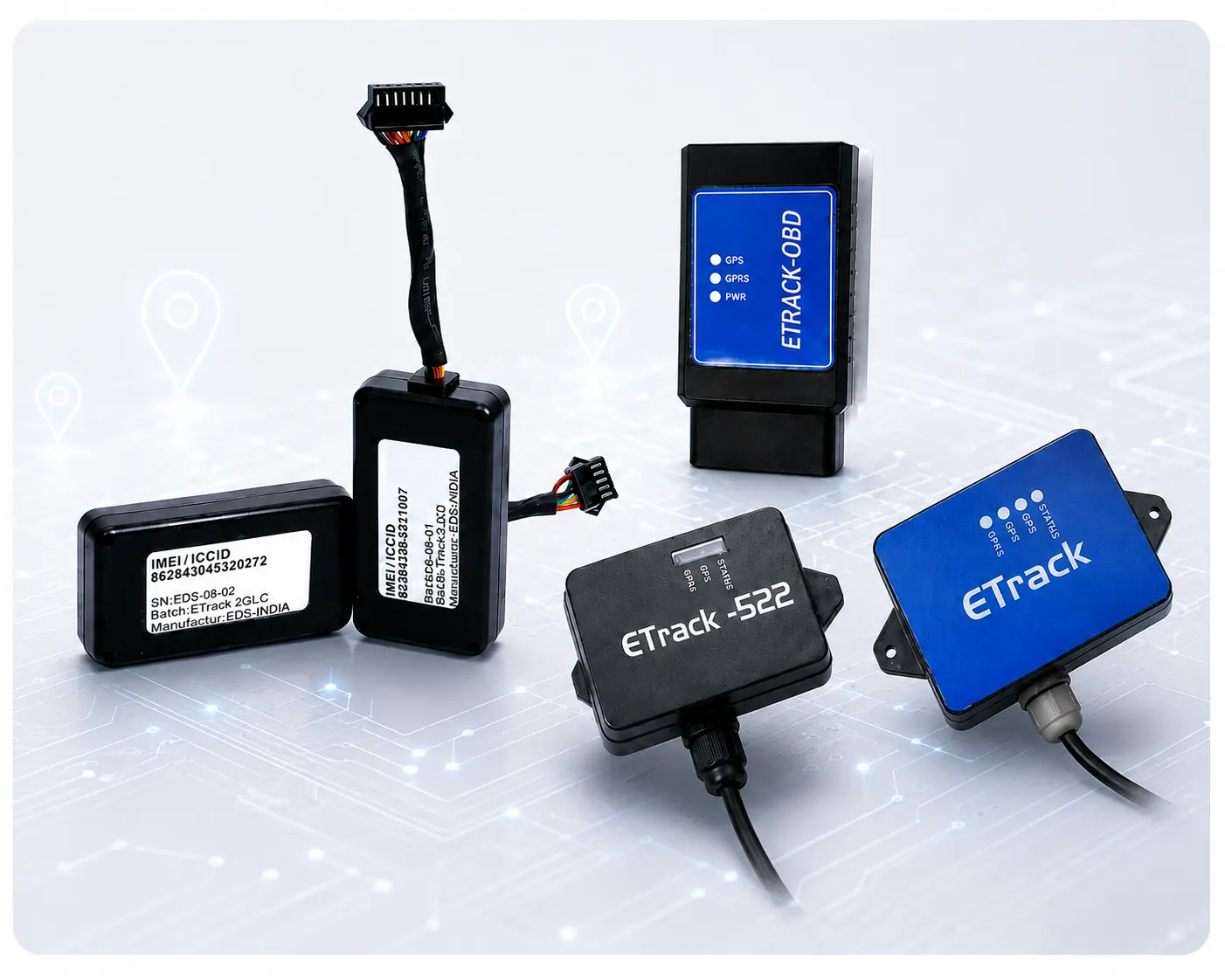

ETrack is among the best in class design tracking systems, with numerous built-in intelligence acquired by reach experience of Team EDS.
Features
| Parameters |
ETrack-100 |
ETrack-201 |
ETrack-312 |
ETrack-442 |

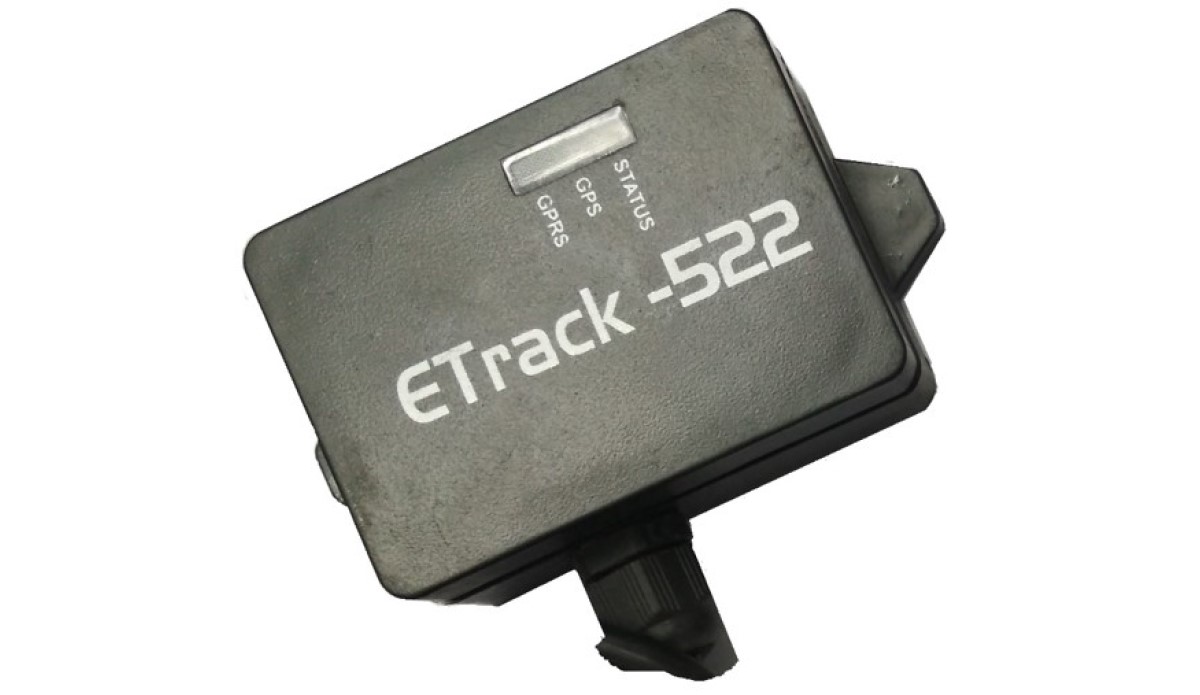

ETrack-522 |

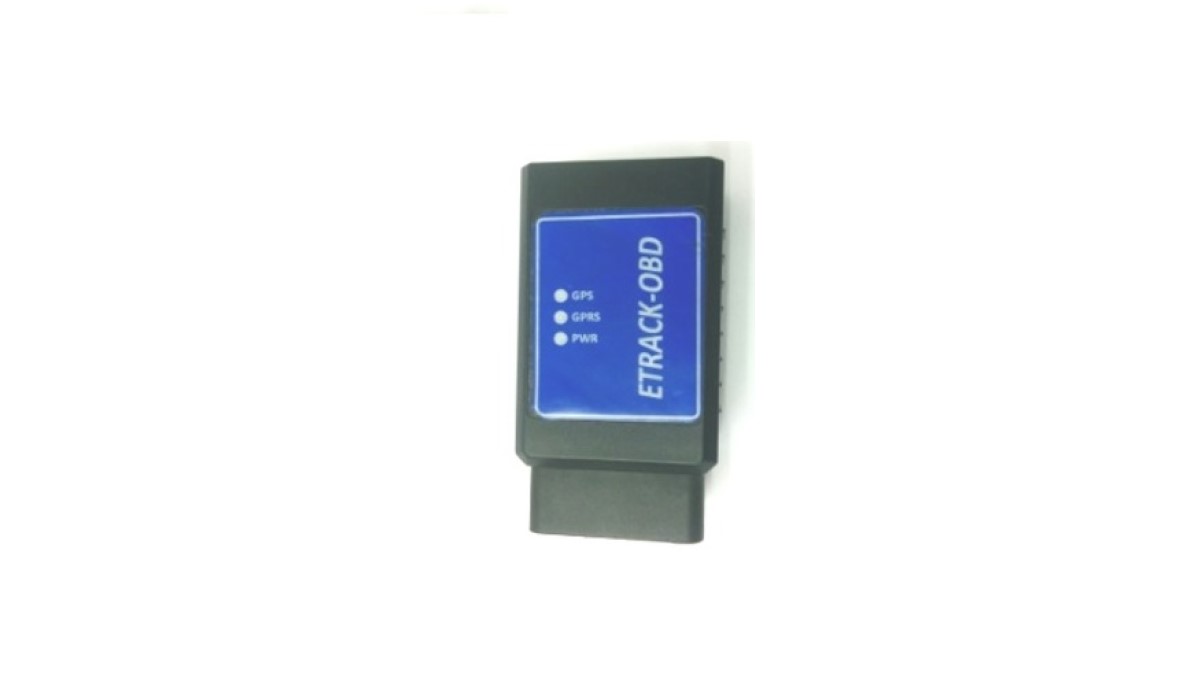

ETrack-OBD |
| Digital Input |
1 |
1+1 |
1+2 |
1+3 |
1+4 |
- |
| Analog Input |
0 |
0 |
1 |
4 |
2 |
- |
| Digital Output |
0 |
1 |
2 |
2 |
2 |
- |
| 2-Way Audio |
No |
No |
No |
Yes |
No |
No |
| Accelerometer & Gyro |
No |
No |
No |
Yes |
Yes |
Optional |
| Dual SIM & Multi Operator |
No |
No |
No |
Yes |
Yes |
Optional |
| SIM TYPE |
Plastic |
E-SIM & Plastic |
Plastic |
Dual Plastic |
E-SIM & Plastic |
Plastic |
| Communication |
N.A |
CAN |
RS-232 |
USB + RS-232 |
RS-232 |
N.A |
| Driver Behaviour |
No |
No |
No |
Yes |
Yes |
Optional |
| Vehicle Health |
No |
No |
No |
No |
No |
Yes |
ETrack - Device USP
- Hard, Compact, Light-weight unit with Environment friendly IP67 or IP65 plastic casing
- Smart data acquisition – Optimized based on Event, Time, Angle, Ignition & Distance
- GPS Dark zone / multi path elimination using LBS & Cell Tower Triangulation
- Virtual trip meter with automatic Trip start and Trip end detection
- Power / SIM / Battery & Box Tamper detection & Emergency (SOS) Alerts
- Configurable SMS Alerts from device on Tampering, Over speeding or Vehicle Towing
- Remote Log maintenance and support using SMS
- Device can be configured to hit multiple servers for a single event
- Vehicle health & Behaviour Monitoring (OBD-II)
- Driver Behaviour Monitoring
- Configuration parameters can be updated through SMS
- Configuration Parameters protected by Authenticate Password / Master number.
- Configurable SMS Alerts.
- Auto APN Setting overridden by manual APN Setting
- Supports Multi-Operator (Up to 4 Operator Profiles)
- Supports Dual- Sim (Plastic SIM + M2M SIM)
- Reverse Geo-Address from device (optional)
- Events from I/O elements detection and sending via GPRS or SMS
- 5 Circular Geo-fencing inside device
- Internal / External Battery monitoring
- Generate Alerts for Internal / External Battery low voltage level
- Configurable External & Internal Battery Cut-off
- Complete auto cut-off from vehicle battery to prevent battery discharge
- Automated FOTA (firmware updating via GPRS in moving condition)
ETrack - Technical Specification
| Parameters |
Rating |
| Power Input |
8V DC to 36V DC / 95V DC |
| Current Consumption |
Normal ~ 60mA; Peak ~ 2.5A; Sleep ~ 1mA |
| Internal Battery - Backup Time |
900 / 1100 / 3000mAH – Backup 4 Hour to 72 Hour |
| Operating Temp (Storage Temp) |
0°C to +85°C (-10°C to +85 °C) |
| CPU |
ARM Cotex-M3 / ARM Cotex-M0 |
| External Memory |
8/16 MB Flash |
| Wired Communication |
1 RS-232 Port (excl. 2xx model & OBD), 1 USB Device (Optional) |
| GSM /GPRS MODEM |
850/900/1800/1900 MHz Quad Band, Multi Slot (12/10/8), Class B GPRS Module |
| Navigation – GPS + GLONASS + IRNSS Receiver |
GPS - L1 1575.42MHz C/A Code \n GLONASS – L1 1598.0625~1605.275MHz |
| Serial Interface |
CCTV Camera/RFID/Biometrics Sensors (Optional) |
| GSM/GPS Antenna |
Internal |
